VizModules

R-CMD-check Tests pkgdown

This package utilizes various viz packages (currently dittoViz and plotthis along with native plotting functions) to create interactivity-first Shiny modules for common plot types, designed to serve as building blocks for Shiny apps and as the basis for more complex/specialized modules.

These modules contain all possible functionality for each plot with some additional parameters that make use of the interactive features of plotly, e.g. interactive text annotations, arbitrary shape annotations, multiple download formats, etc.

The modules provide comprehensive plot control for app users, allowing for convenient aesthetic customizations and publication-quality images. They also provide developers a way to dramatically save time and reduce complexity of their plotting code or a flexible base to build more specialized Shiny modules upon.

Install

# CRAN
install.packages("VizModules")

# Development version
remotes::install_github("j-andrews7/VizModules")

Quick Start

Using Modules in Your Own App

To use a module in your own app, simply call the *InputsUI(), *OutputUI(), and *Server() functions for the module you want to use. For example, to use the ScatterPlot module from dittoViz, you would do something like this:

library(VizModules)

ui <- fluidPage(
    sidebarLayout(
        sidebarPanel(
            dittoViz_scatterPlotInputsUI(
                "cars",
                mtcars,
                defaults = list(
                    x.by = "wt",
                    y.by = "mpg",
                    color.by = "cyl"
                )
            )
        ),
        mainPanel(dittoViz_scatterPlotOutputUI("cars"))
    )
)

server <- function(input, output, session) {
    dittoViz_scatterPlotServer(
        "cars",
        data = reactive(mtcars)
    )
}

shinyApp(ui, server)

Every module uses the same trio of functions: *InputsUI() for controls, *OutputUI() for the plot, and *Server() for the logic. The separation of InputsUI and OutputUI allows you to place input controls and the actual plot wherever you’d like.

Use defaults to pre-fill inputs, and hide.inputs/hide.tabs to hide controls while keeping their values so you can enforce app-level defaults without exposing them.

Modules built on plotting functions from other packages expose most of the underlying arguments. The module input help pages (e.g., ?dittoViz_scatterPlotInputsUI, ?plotthis_AreaPlotInputsUI) list what is wired through and any omissions; cross-reference the underlying plot docs (?dittoViz::scatterPlot, ?plotthis::AreaPlot, etc.) to see the full parameter set.

Example Apps for Each Module

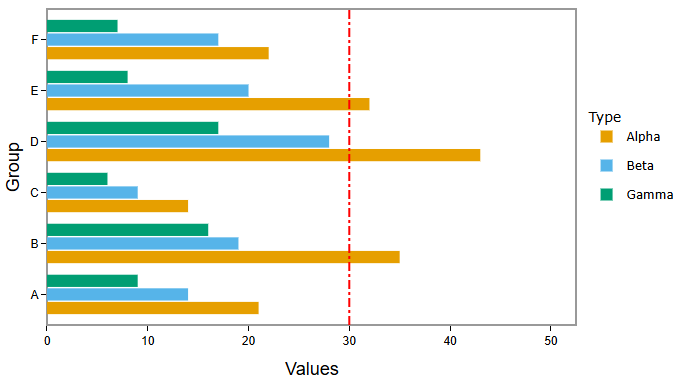

Every module has a corresponding *App() function that creates a complete Shiny app showcasing the module’s functionality with example data. For instance, plotthis_BarPlotApp() creates an app BarPlot module. You can run these apps directly to explore the module’s features and see how it works in a full Shiny context.

library(VizModules)
# Using built-in example data (or upload your own file in the app)
plotthis_BarPlotApp()

# Providing your own data
df <- data.frame(
    category = c("A", "B", "C"),
    value = c(10, 20, 15),
    group = c("X", "Y", "X")
)

plotthis_BarPlotApp(data = df)

App Factory

Every built-in *App() convenience function (e.g. plotthis_BarPlotApp(), linePlotApp()) is a thin wrapper around createModuleApp() with sensible default data. You can also pass your own custom wrapper module functions to createModuleApp() for rapid prototyping after defining the UI and server functions.

library(VizModules)

app <- createModuleApp(
    inputs_ui_fn = plotthis_BarPlotInputsUI,
    output_ui_fn = plotthis_BarPlotOutputUI,
    server_fn    = plotthis_BarPlotServer,
    data_list    = list("cars" = mtcars),
    title        = "My Bar Plot"
)

runApp(app)

Building Custom Wrapper Modules

The modules in VizModules are designed to be composed and extended. You can build higher-level modules that add custom logic while reusing the full functionality of the base modules.

For more details, see vignette("custom-modules", package = "VizModules").

Modules Provided

Currently, VizModules contains a functional Shiny module for the following visualization functions:

dittoViz

plotthis

Plotting Functions Defined in VizModules

Via direct implementation with plotly.

Statistical Testing

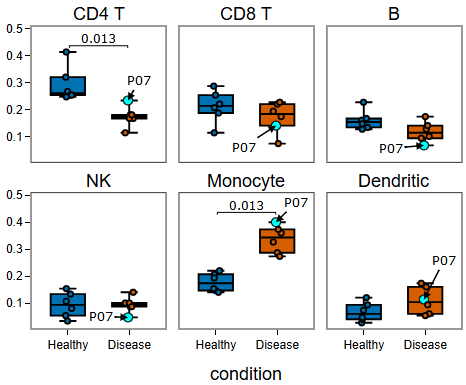

The BoxPlot, ViolinPlot, and yPlot modules include a Stats tab that adds pairwise statistical testing with bracket annotations directly on the plotly figure.

Supported Tests

Features

Data Format for Paired Tests

When using paired tests (Wilcoxon signed-rank or paired t-test), each group must have the same number of observations in corresponding order. Data should be sorted so that paired samples align row-by-row within each group.

Modules Planned

dittoViz

dittoViz is under active development, so additional modules may be added as more visualization functions are added.

Contributing a New Module

To contribute a new module to the package, see the vignette for clear guidelines: vignette("adding-a-new-module", package = "VizModules")

Available Modules

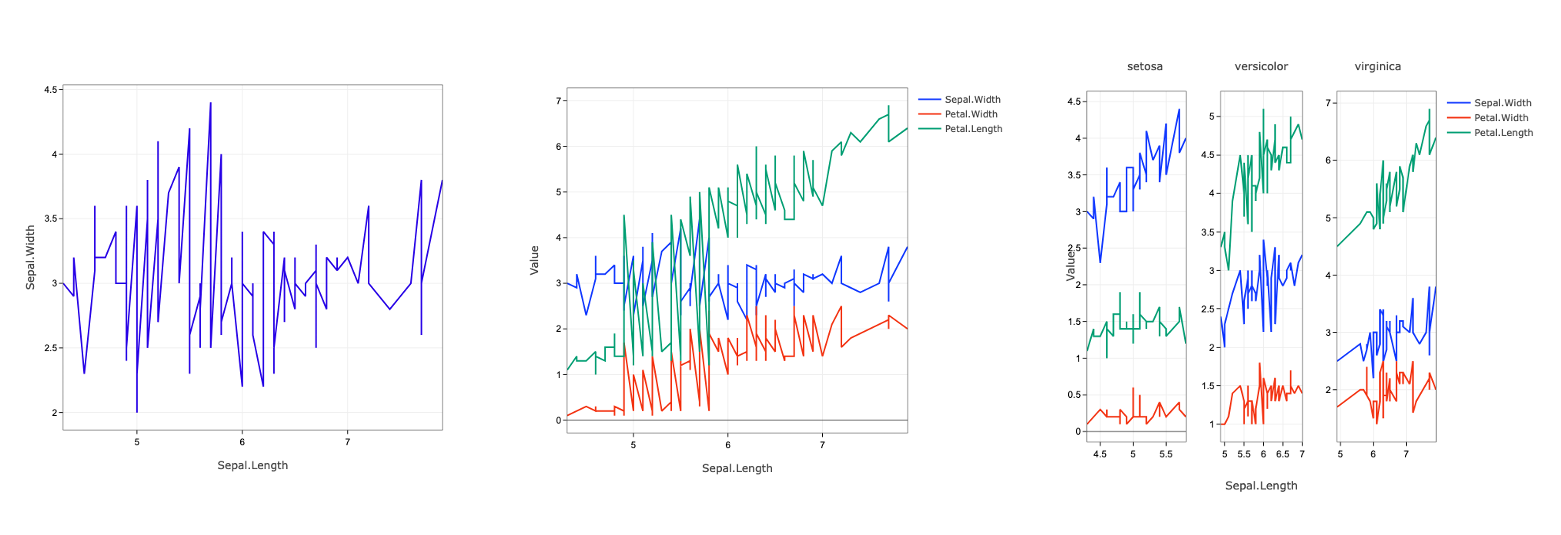

linePlot:

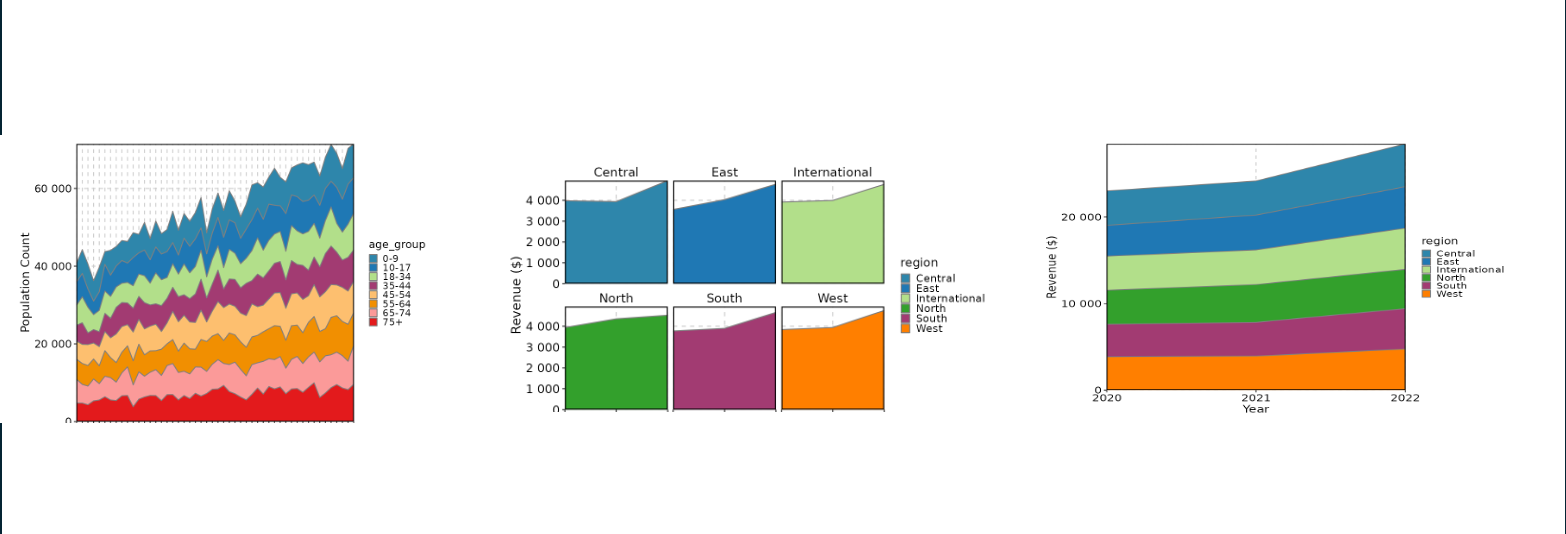

plotthis_AreaPlot:

(Source Plotting Function)

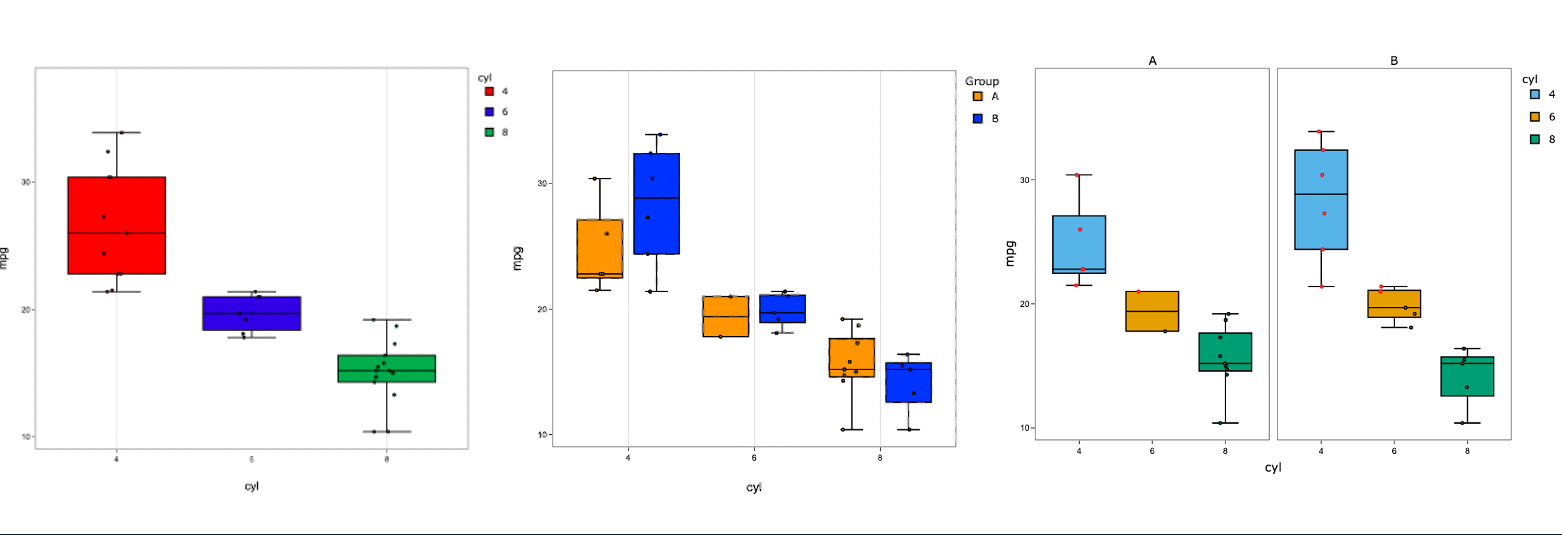

plotthis_BoxPlot:

(Source Plotting Function)

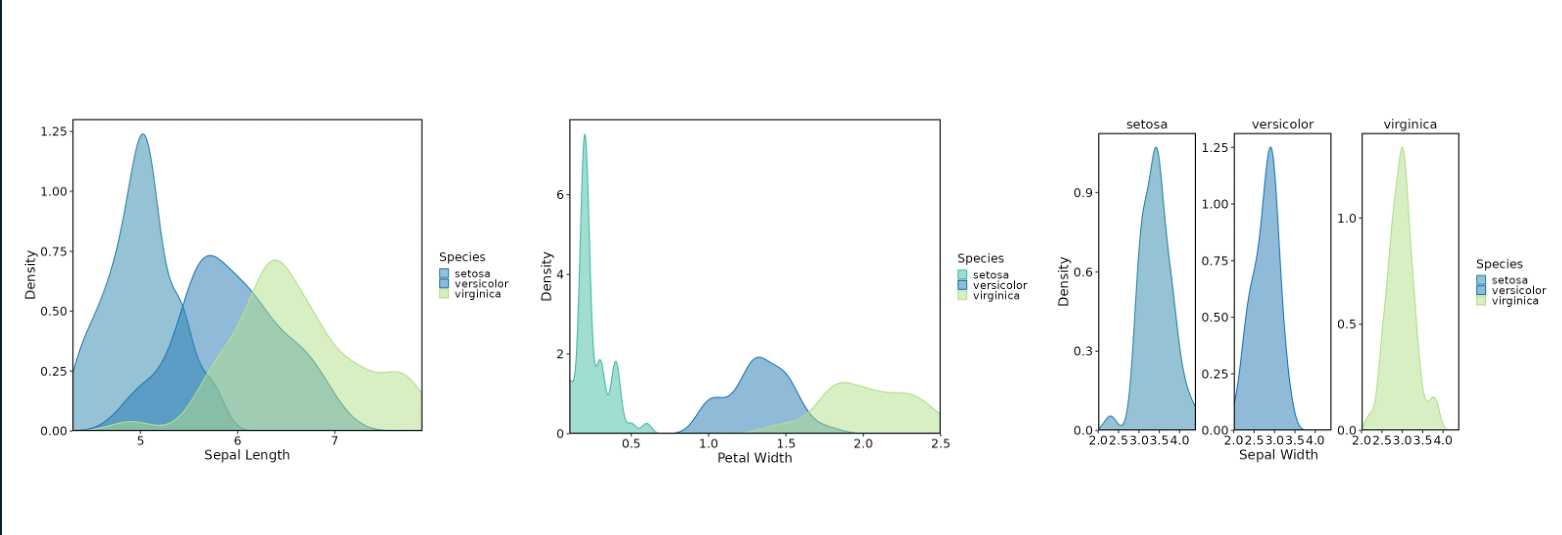

plotthis_DensityPlot:

(Source Plotting Function)

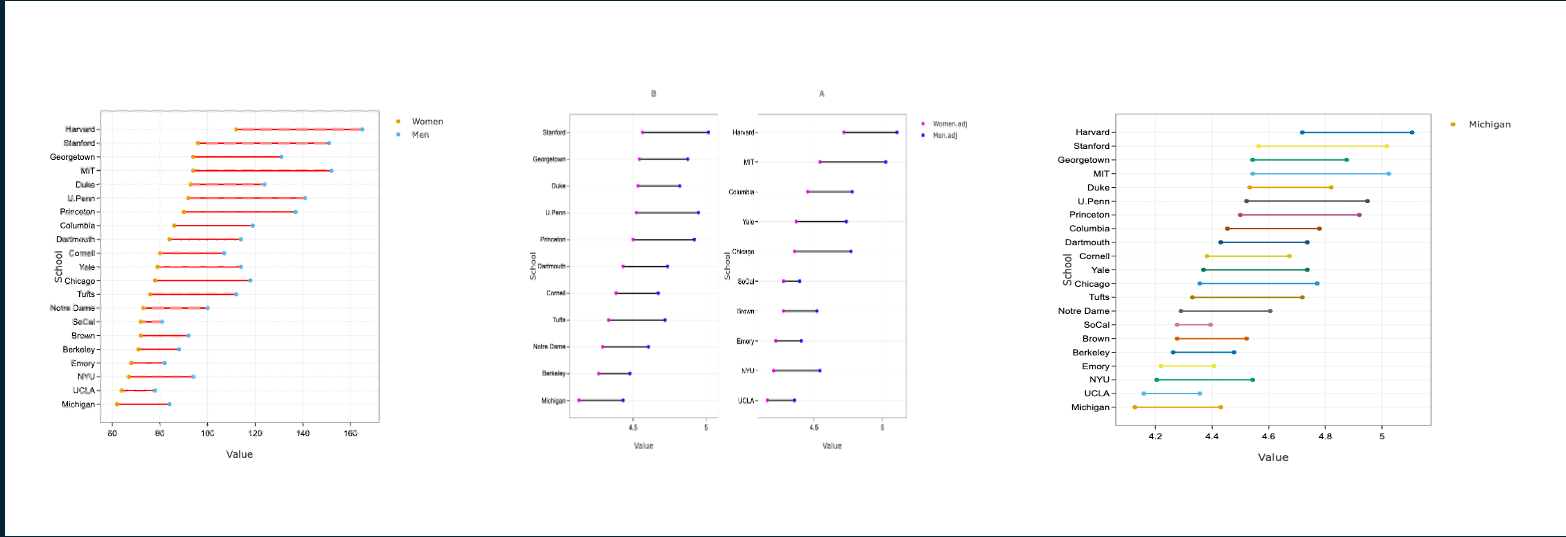

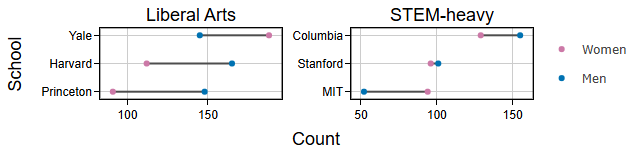

dumbbellPlot:

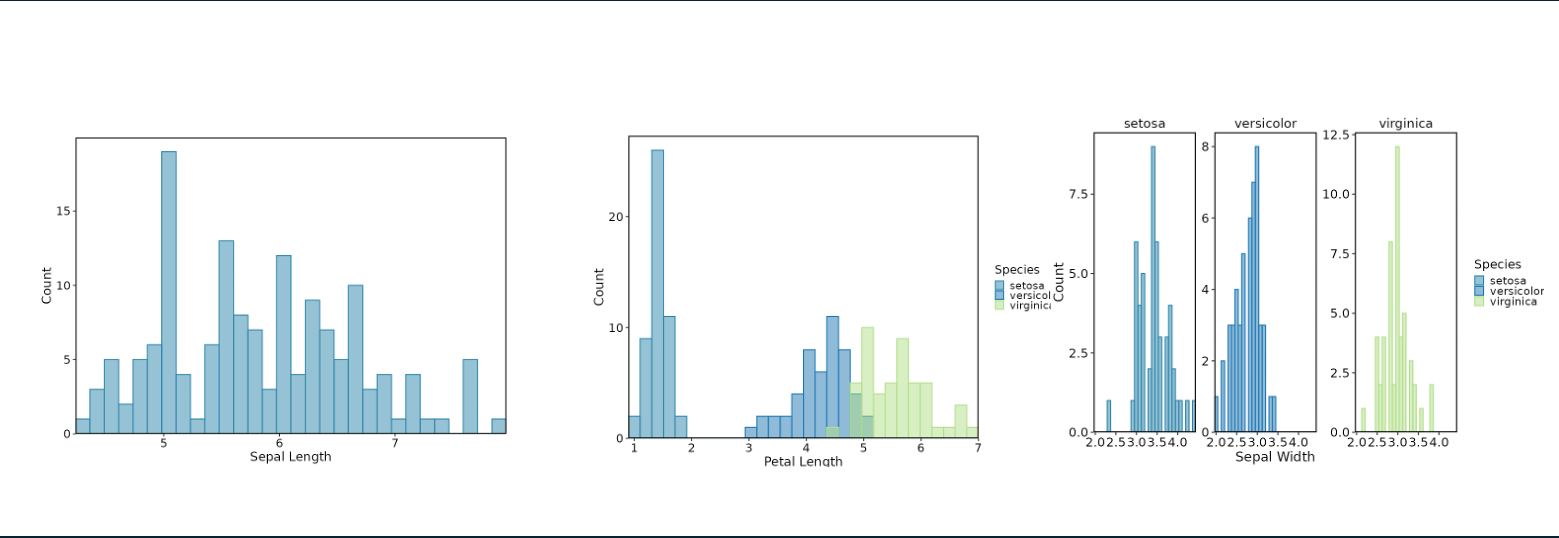

plotthis_Histogram:

(Source Plotting Function)

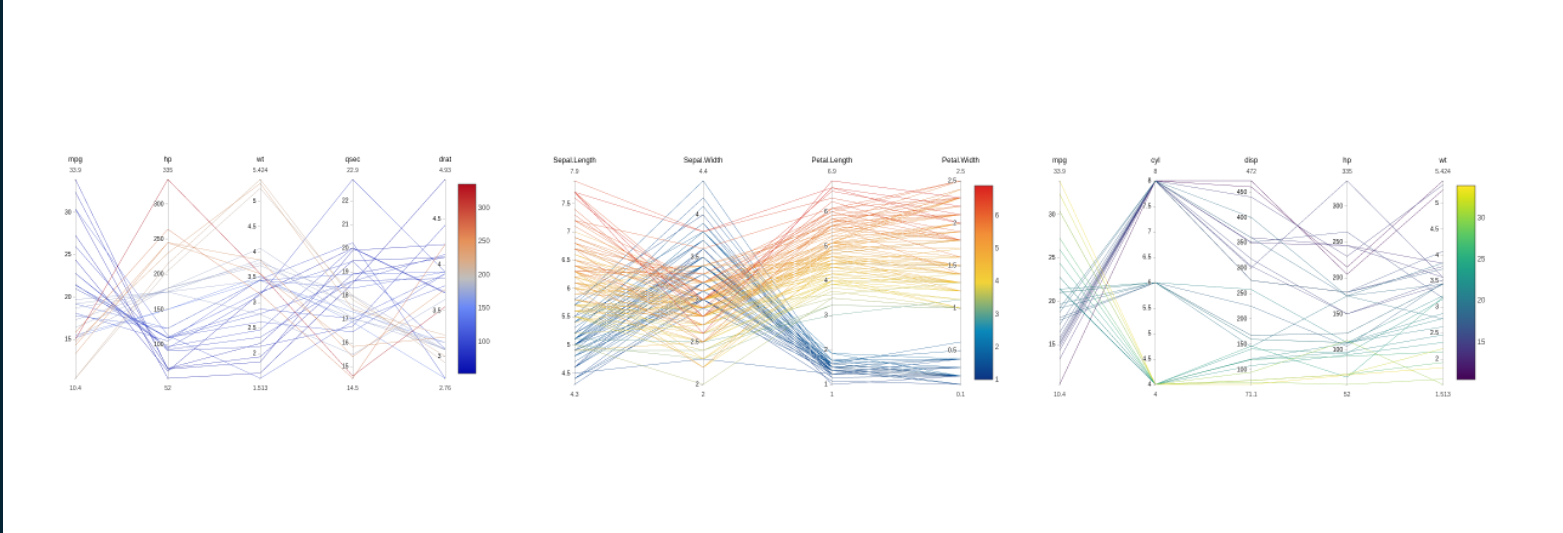

parallelCoordinatesPlot:

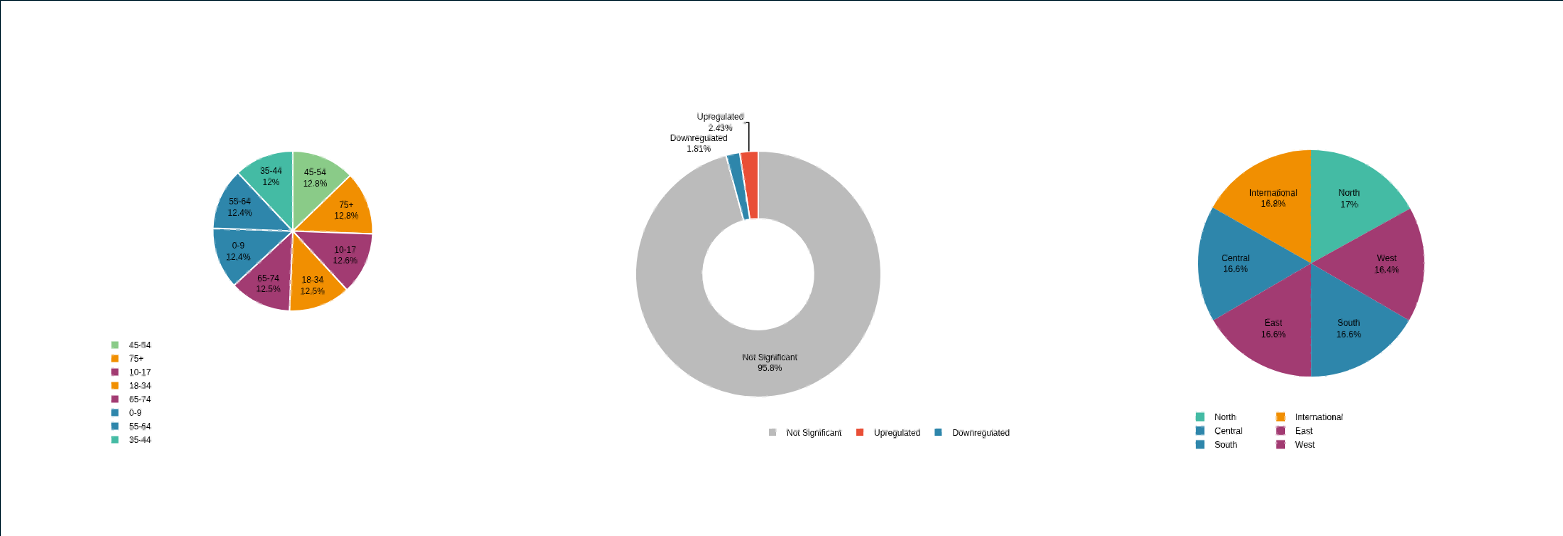

piePlot:

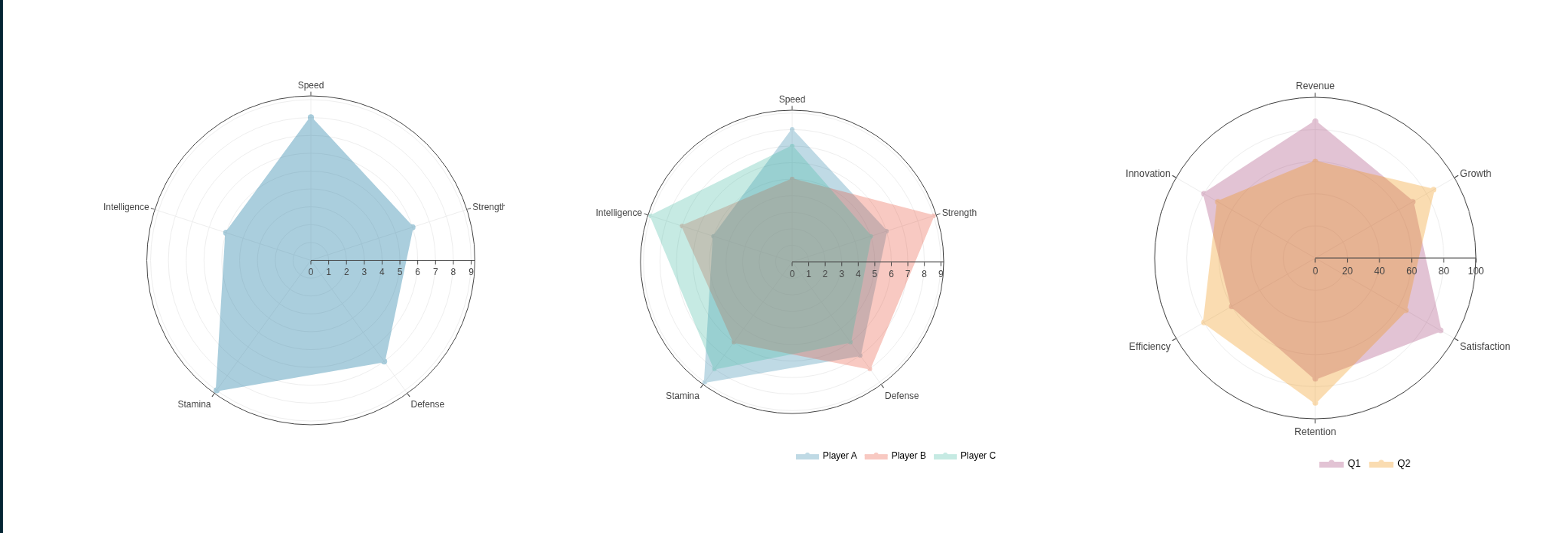

radarPlot:

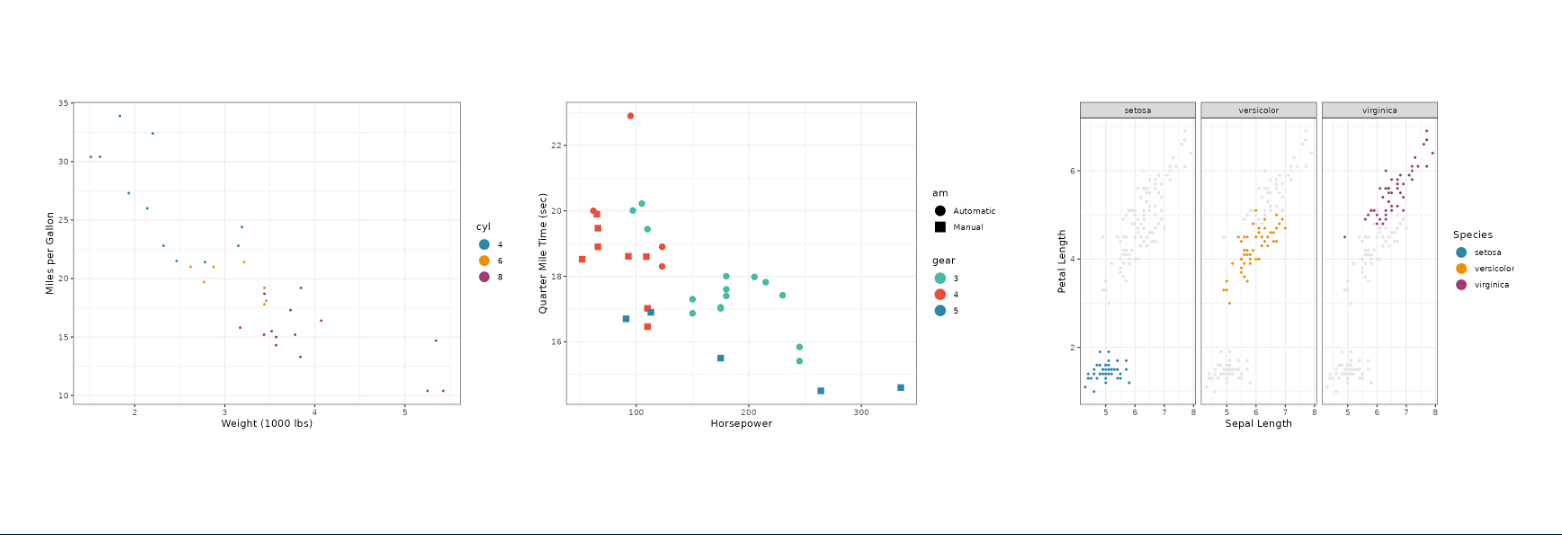

dittoViz_ScatterPlot:

(Source Plotting Function)

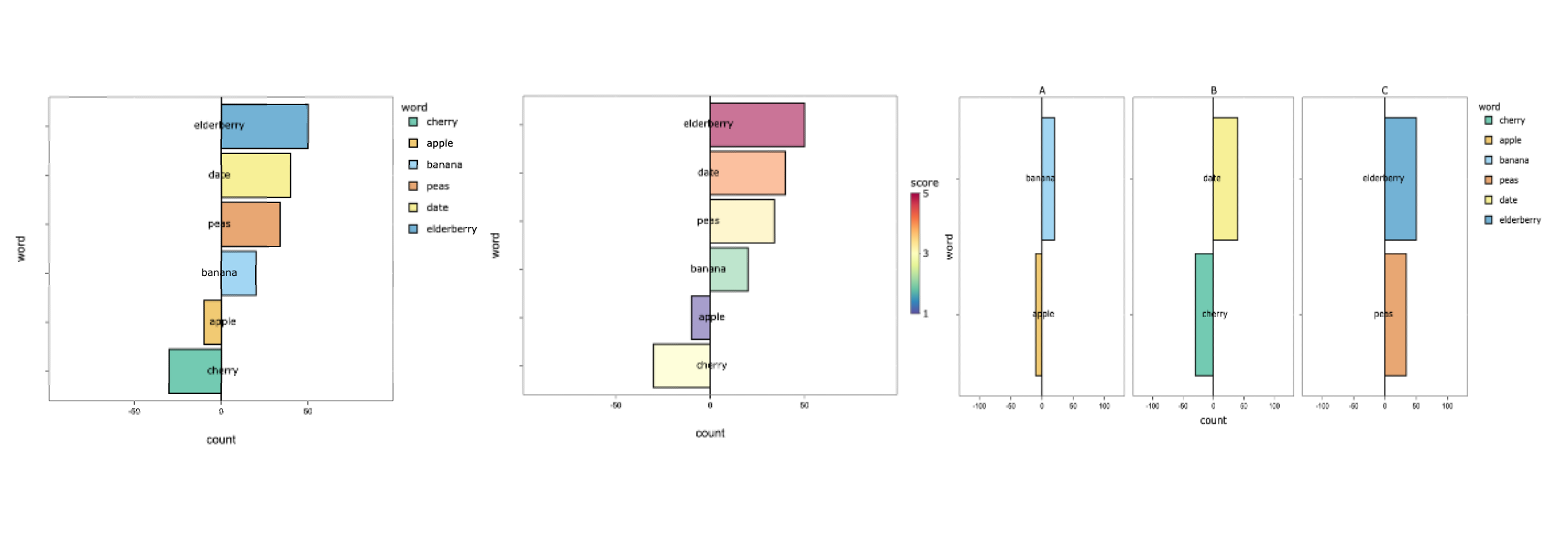

plotthis_SplitBarPlot:

(Source Plotting Function)

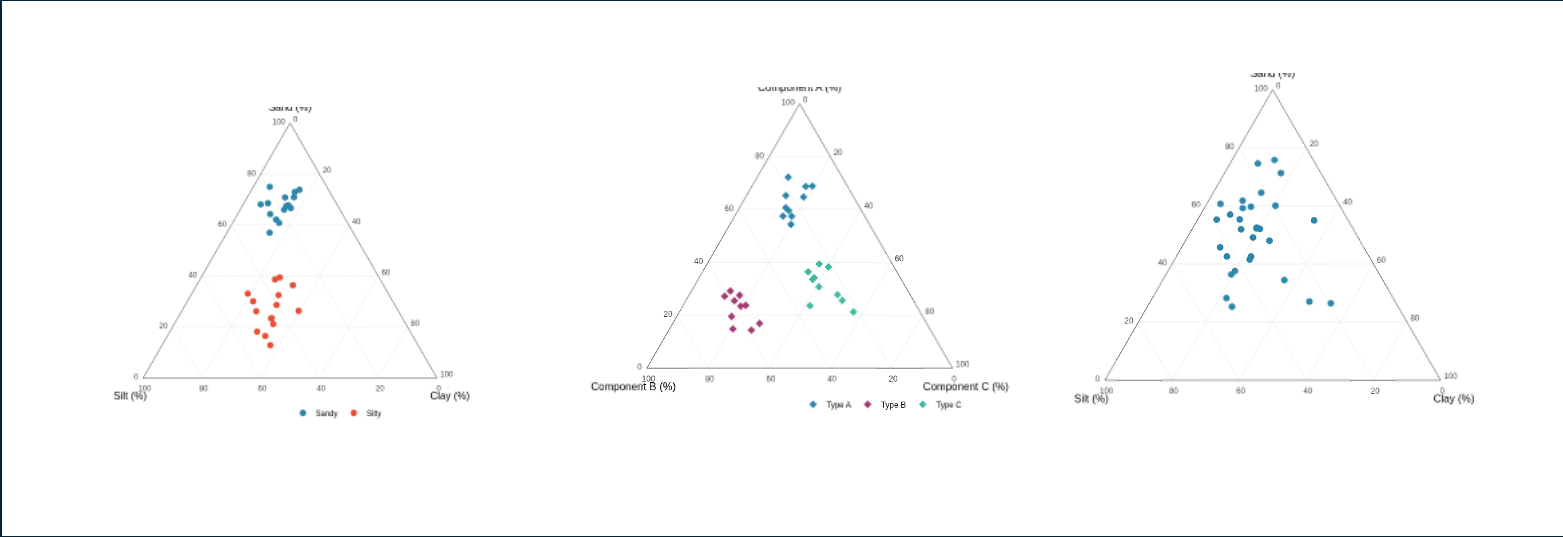

ternaryPlot:

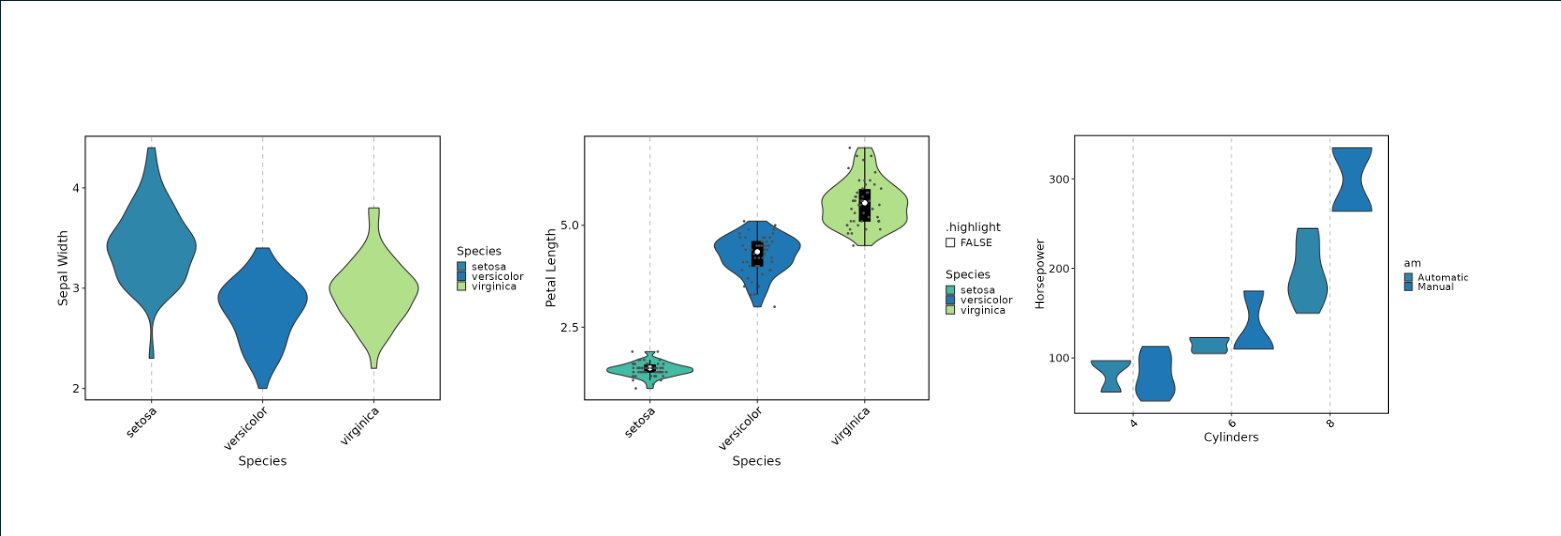

plotthis_ViolinPlot:

(Source Plotting Function)

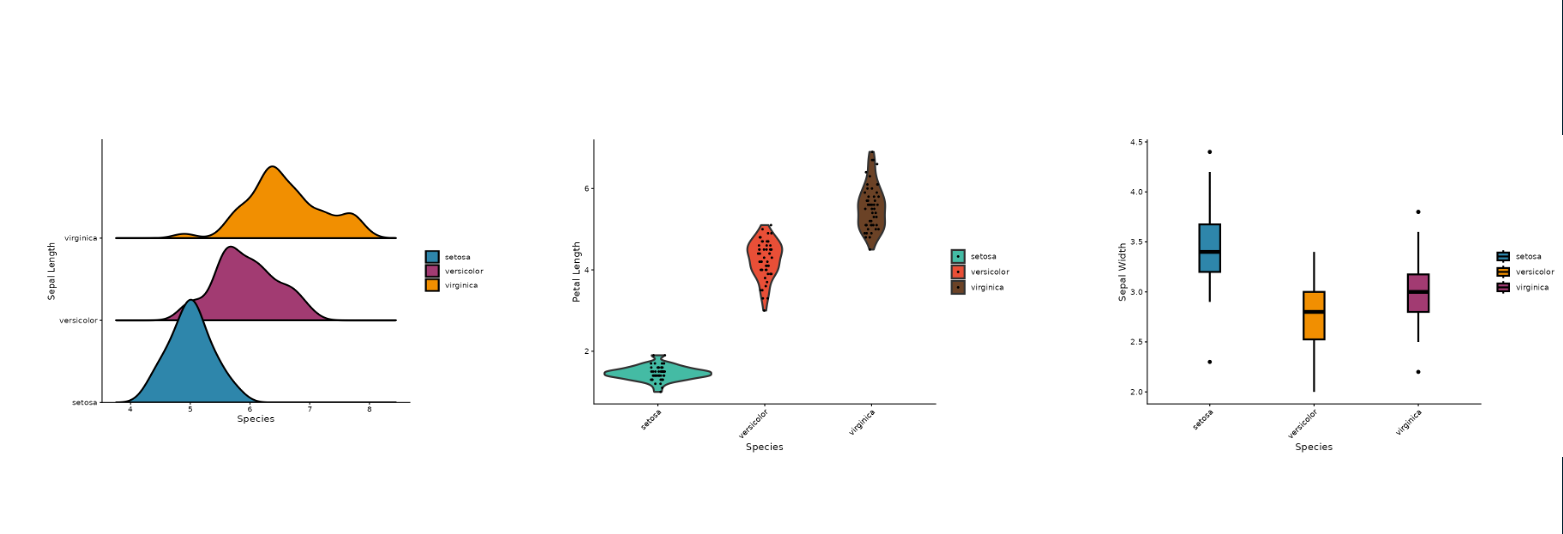

dittoViz_yPlot:

(Source Plotting Function)

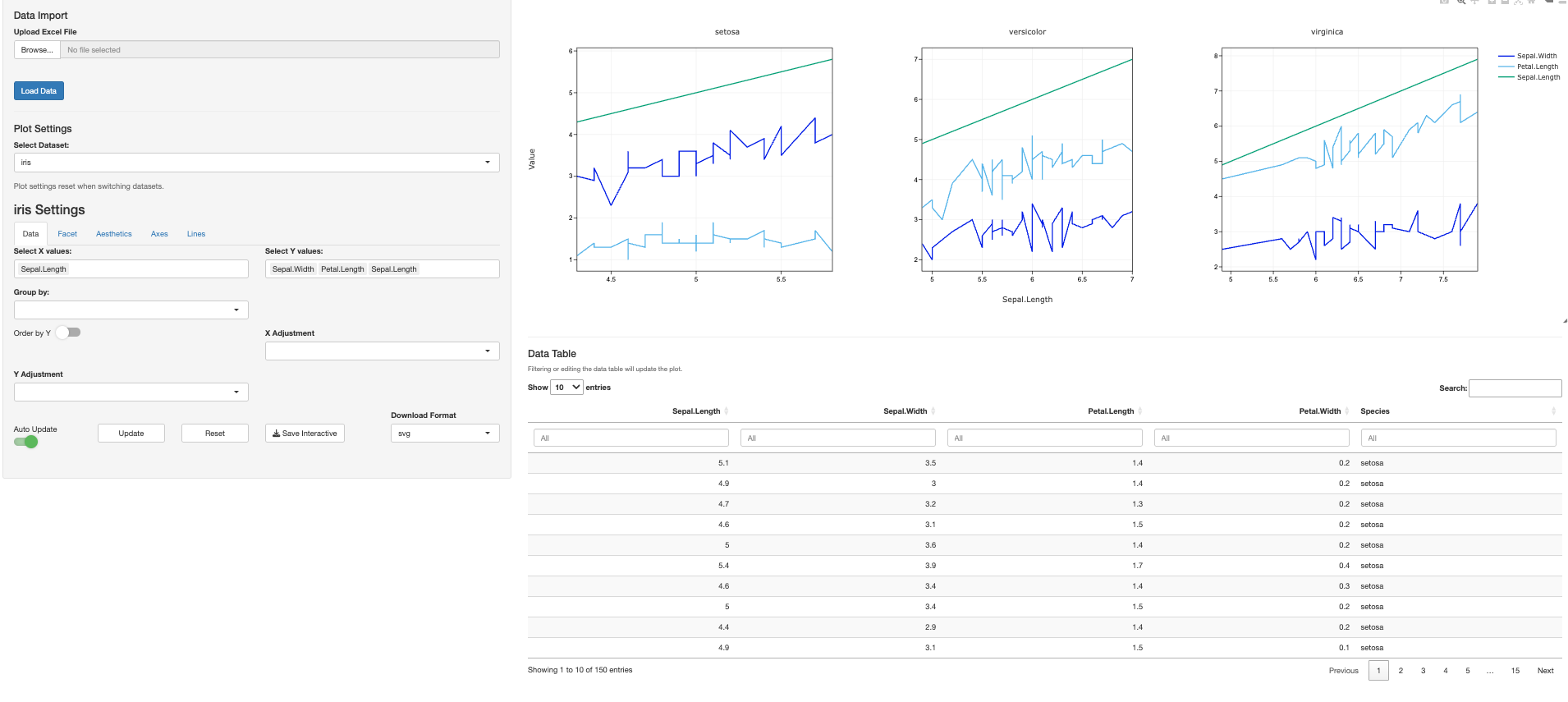

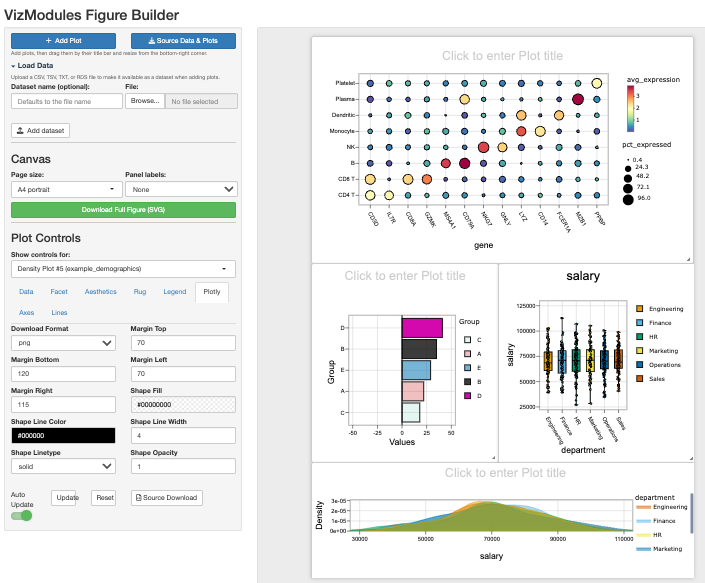

UI Example
