potentiomap

potentiomap turns groundwater-level observations into auditable potentiometric-surface analyses, validation and uncertainty summaries, monitoring-network diagnostics, contours, profiles, and GIS-ready products.

Website · Examples · Function reference · Source · Issues · CRAN

What it provides

preparation of measured head and positive depth-to-water observations;
observation QA, monitoring-event selection, and explicit screen grouping;

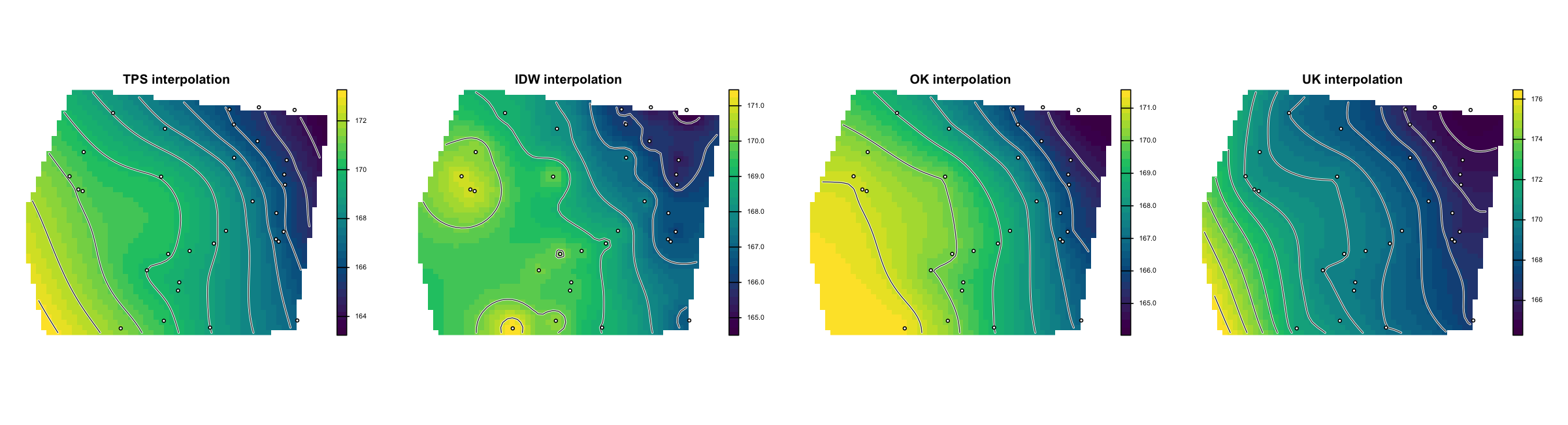

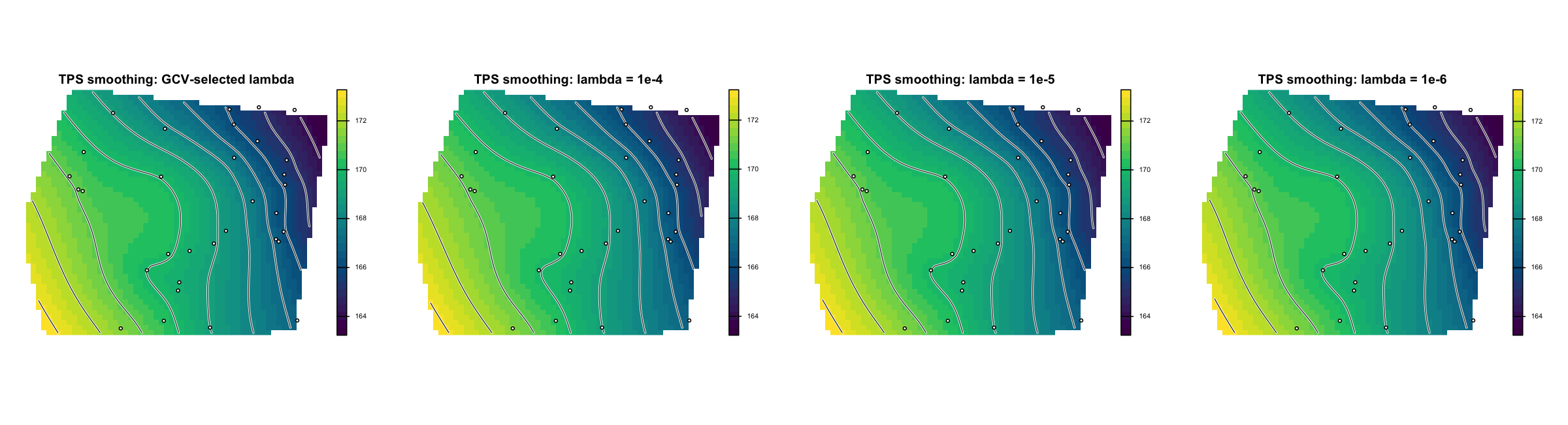

TPS, IDW, ordinary-kriging, universal-kriging, and custom interpolation;
variograms, external drift, validation, nested tuning, and retained fits;
prediction support, model-conditional uncertainty, method ensembles, and disagreement summaries;
event change, vertical gradients, well influence, network thinning, and constrained candidate-site ranking;
depth surfaces, transect profiles, and plot-ready cross-sections;
contours that can be divided into supported, approximate, and unsupported sections using user-defined criteria;

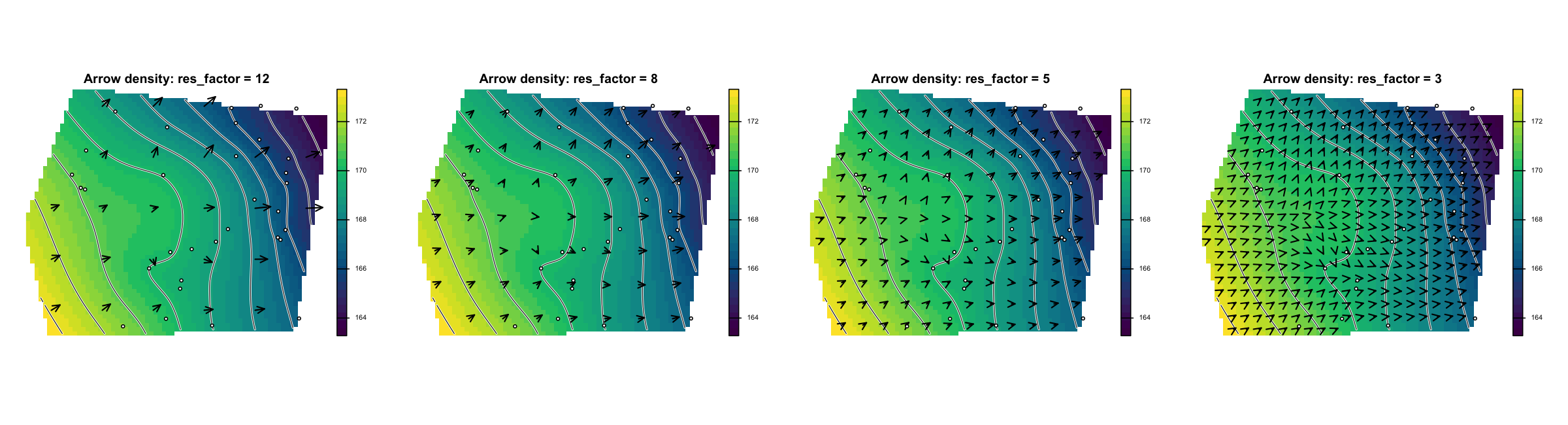

checked downgradient arrow symbols, open GIS styles, and technical reports.

Existing surface and contour workflows remain available with their ordinary return values. Rich result objects are optional when diagnostics, support, and manifests are needed.

Two synthetic maps: a potentiometric surface with observation wells, contours, and model-gradient arrows; and contour segments drawn with line patterns for user-defined support classes. — A reproducible overview from the installed synthetic data: a fitted surface (left) and checked model-gradient symbols with contours (right). Arrow length is a display convention, not groundwater velocity or a traced flow path.

Installation

Version note: CRAN currently serves potentiomap 0.1.0. This website documents 0.2.0 while that release is being reviewed. Use CRAN for the published release, or install the 0.2.0 source from GitHub when you need the features documented here.

install.packages("potentiomap")

install.packages("pak")
pak::pak("el-cordero/potentiomap")

Minimal workflow

library(potentiomap)

data("synthetic_wells")
points <- ps_make_points(
  synthetic_wells,
  x = "x", y = "y", value = "gw_elevation",
  name_col = "well_id", crs = "EPSG:26916"
)

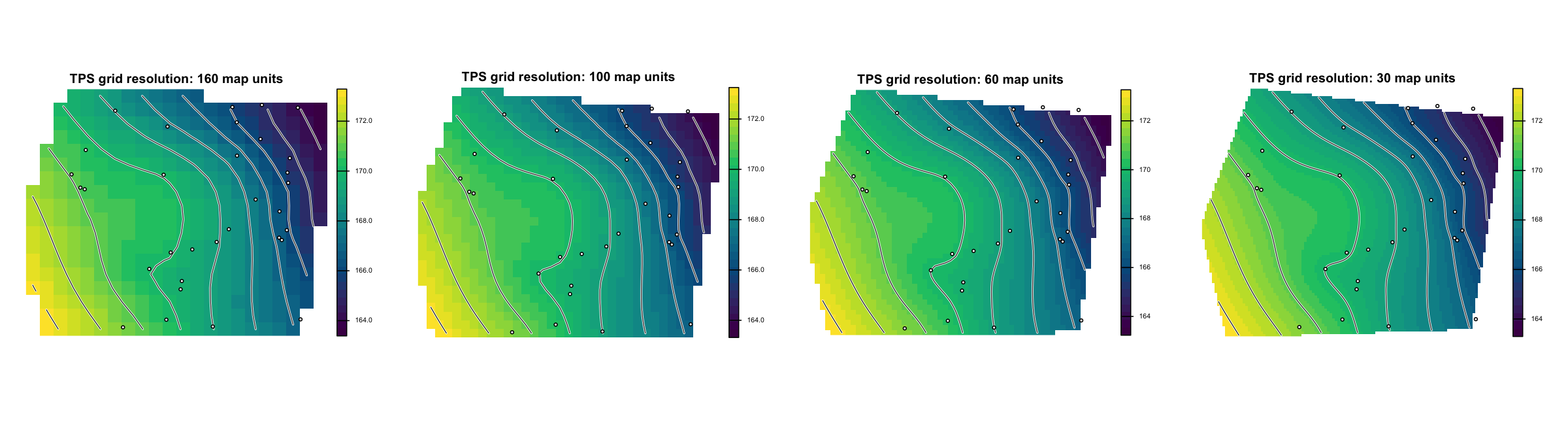

surface <- ps_interpolate(points, methods = "TPS", grid_res = 100)$TPS

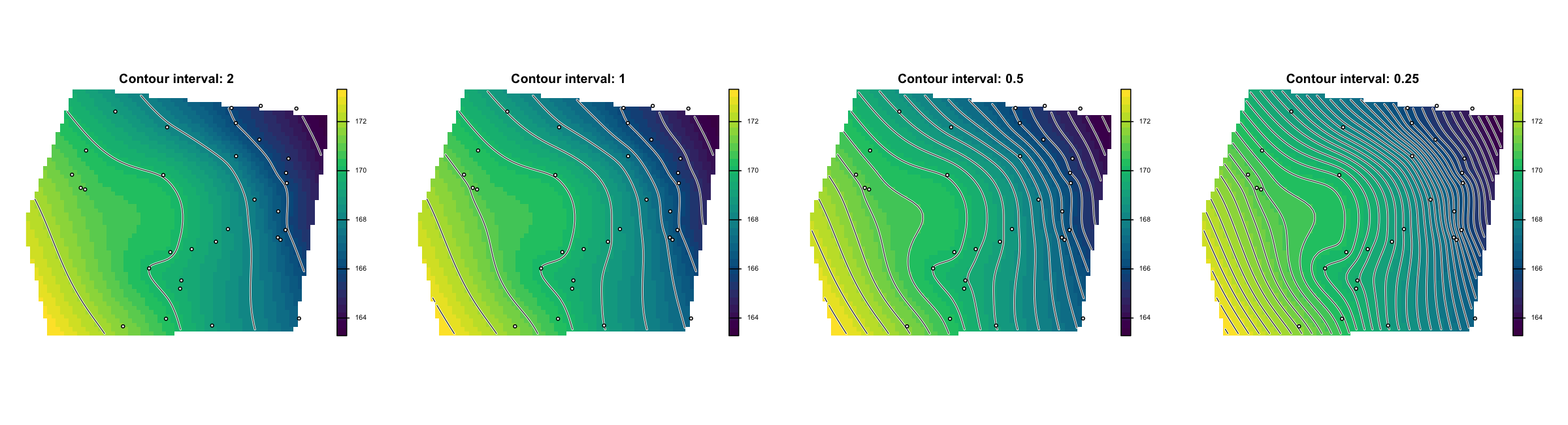

contours <- ps_contours(surface, interval = 1)
ps_quicklook(surface, contours = contours, points = points)

For complete, executable walkthroughs with printed outputs and maps, use the Examples section:

Scientific scope

potentiomap is not a groundwater-flow or contaminant-transport model. Interpolated surfaces depend on monitoring-network geometry, data quality, aquifer selection, screened intervals, boundary conditions, and method assumptions.

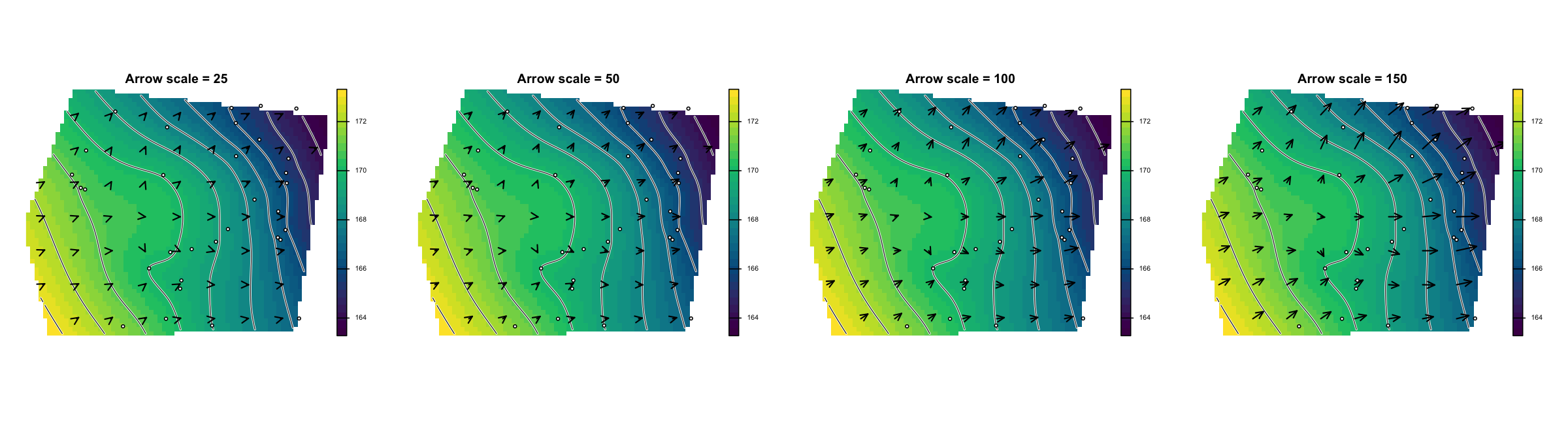

Prediction-support classes describe support available for a mapped result; they do not establish that a contour is correct and are not statistical confidence intervals. Hydraulic-gradient arrows point toward decreasing modeled head. Their length is a display convention, not velocity, travel time, or a traced groundwater path.

Cross-validation describes its recorded prediction task, not automatic area-wide map accuracy. Kriging variance is model conditional, method spread is not statistical uncertainty, modeled head change is not storage change, and network rankings are not globally optimal drilling plans.

Documentation and support

Do not post confidential well coordinates, client data, private site identifiers, or restricted environmental data in public issues.

Run citation("potentiomap") for the package citation.
