ibdfindr

The goal of ibdfindr is to detect genomic regions shared identical by descent (IBD) between two individuals, using SNP genotypes. It does so by fitting a continuous-time hidden Markov model (HMM) to the data. The current model has only two states, non-IBD and IBD1, and is therefore primarily intended for unilineal relationships.

ibdfindr was introduced in Vigeland et al. (2026), where it was applied to identify a victim of the 1956 Marcinelle mining disaster in Belgium.

Installation

To get the latest official release of ibdfindr, install from CRAN as follows:

install.packages("ibdfindr")

For the development version, install from GitHub:

remotes::install_github("magnusdv/ibdfindr")

Example

library(ibdfindr)

As an example we consider the built-in dataset cousinsDemo, which contains almost 4000 SNP genotypes for two related individuals. The data were simulated assuming a relationship of first cousins. (For details on how the data was generated, the source code is available in the repository’s folder data-raw.)

head(cousinsDemo)

#>   CHROM     MARKER       MB        CM A1 A2  FREQ1 ID1 ID2
#> 1     1  rs9442372 1.083324 0.0000000  A  G 0.3890 A/G G/G
#> 2     1  rs4648727 1.844830 0.1803812  A  C 0.3628 A/C A/C
#> 3     1 rs10910082 2.487496 1.2670505  C  T 0.3740 C/T C/T
#> 4     1  rs6695131 3.084360 1.9782286  C  T 0.5719 C/T C/T
#> 5     1  rs3765703 3.675872 4.8403127  G  T 0.4058 G/G T/T
#> 6     1  rs7367066 3.887191 5.7748481  C  T 0.6739 C/C C/C

The function findIBD() conveniently wraps the key steps of the package:

• Fit a continuous-time HMM to the data (fitHMM())
• Find the most likely set of IBD segments (findSegments())
• Calculate the posterior IBD probability at each marker (ibdPosteriors())

ibd = findIBD(cousinsDemo)
#> Individuals: ID1, ID2
#> Chromosome type: autosomal
#> Markers: 3915 input, 0 removed, 3915 used
#> Fitting HMM parameters...
#>   Optimising `k1` and `a` jointly; method: L-BFGS-B
#>   k1 = 0.237, a = 7.148
#> Finding IBD segments...
#>   14 segments (total length: 597.21 cM)
#> Calculating IBD posteriors...
#> Analysis complete in 1.09 secs

For details of the different steps, see the documentation of the individual functions: fitHMM(), findSegments(), and ibdPosteriors().

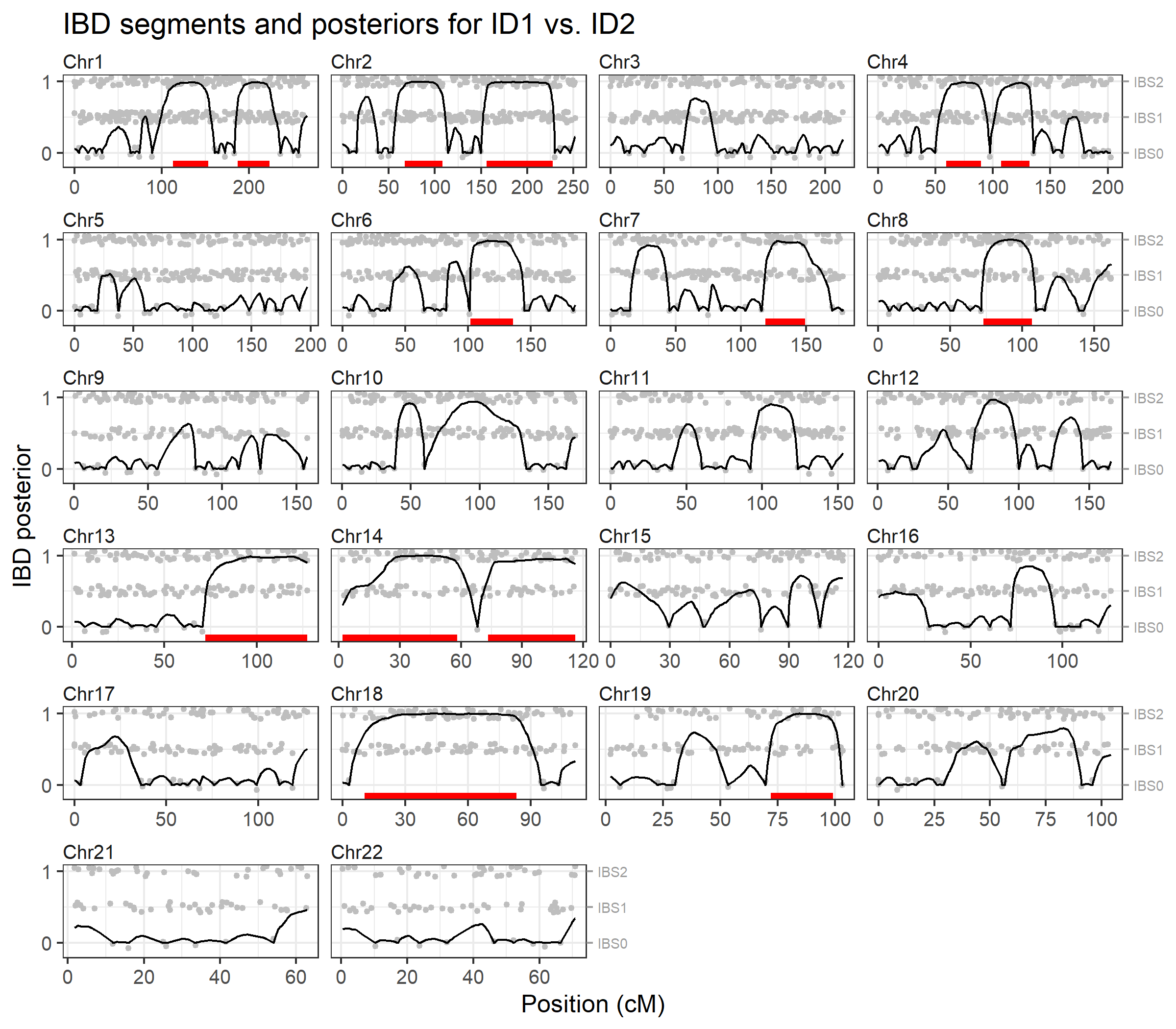

To visualise the results we pass the output to plotIBD(). This plots the posterior probabilities on a background (grey points) showing the identity-by-state (IBS) status at each marker, i.e. whether the individuals have 0, 1 or 2 alleles in common. Inferred IBD regions are shown as red segments at the bottom of each chromosome panel.

plotIBD(ibd)

We may also inspect the identified segments as a data frame, showing the start and end positions, and the number of markers in each segment:

ibd$segments
#>    chrom    startCM     endCM   n
#> 1      1 113.000492 153.08623  54
#> 2      1 186.630319 223.39542  46
#> 3      2  67.118524 108.35905  50
#> 4      2 156.120361 227.62362  90
#> 5      4  59.474215  89.85522  41
#> 6      4 106.931772 131.69280  35
#> 7      6 102.041153 136.17734  43
#> 8      7 118.702115 149.11283  38
#> 9      8  72.976430 106.82971  55
#> 10    13  72.049460 127.22724  63
#> 11    14   1.808552  58.07117  67
#> 12    14  73.201009 116.00254  49
#> 13    18  10.592411  83.28443 101
#> 14    19  72.014020  99.15558  34

X-chromosome example

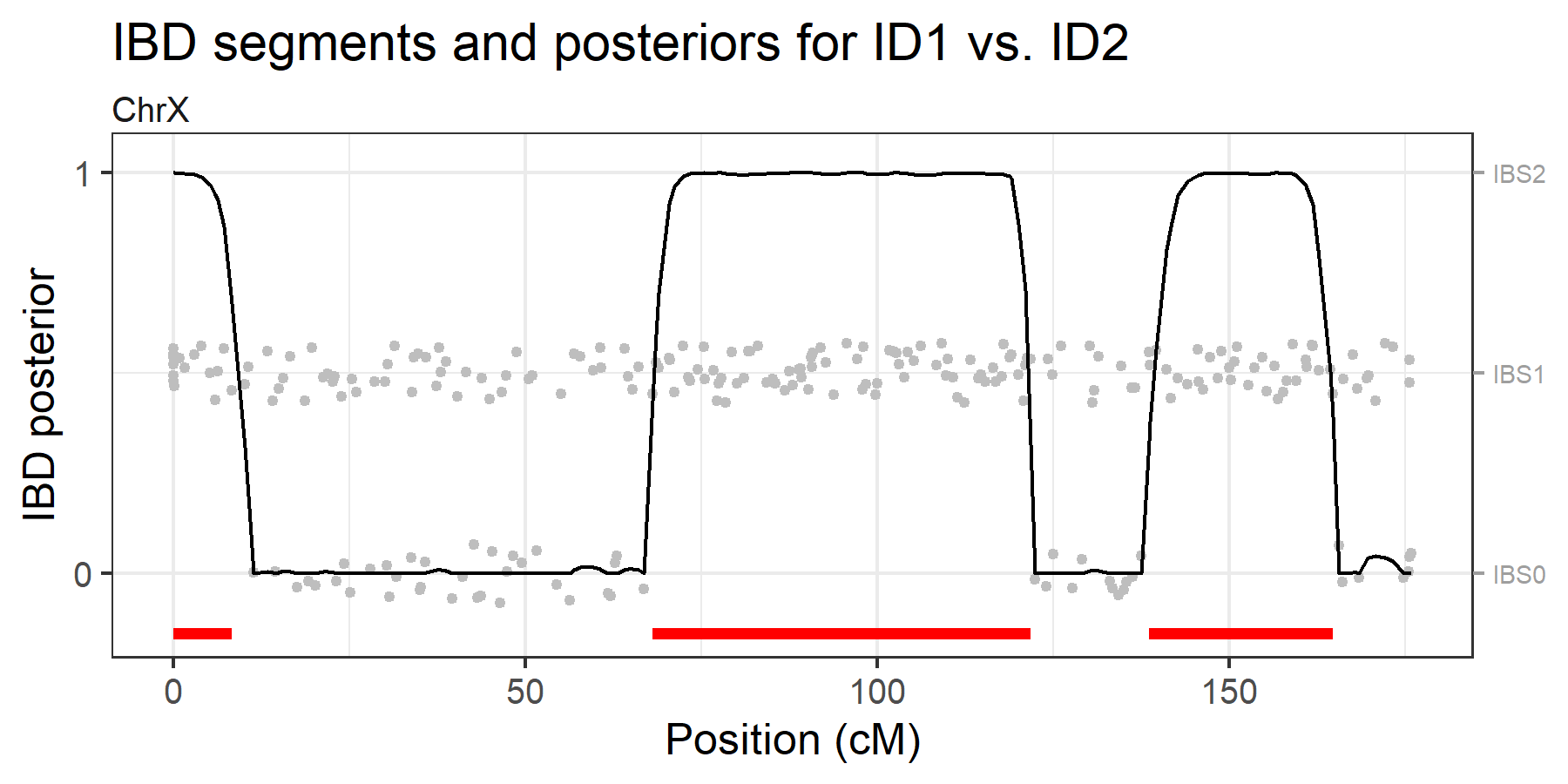

The brothersX dataset contains genotypes for two brothers typed with 246 X-chromosomal SNPs. The analysis below indicates that they share 3 IBD segments on the X chromosome.

ibdX = findIBD(brothersX)
#> Individuals: ID1, ID2
#> Chromosome type: X (male/male)
#> Markers: 246 input, 0 removed, 246 used
#> Fitting HMM parameters...
#>   Optimising `k1` and `a` jointly; method: L-BFGS-B
#>   k1 = 0.502, a = 6.711
#> Finding IBD segments...
#>   3 segments (total length: 88.05 cM)
#> Calculating IBD posteriors...
#> Analysis complete in 0.0866 secs

plotIBD(ibdX)
